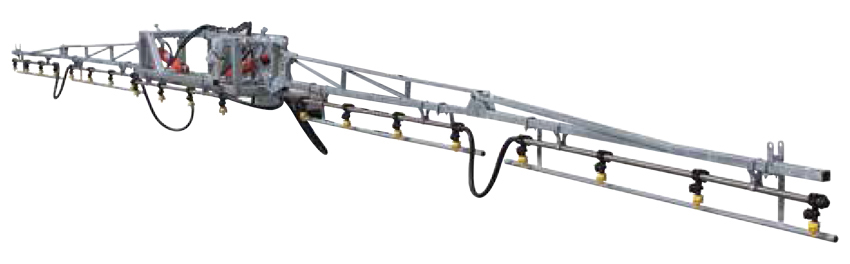

HYDRAULIC FOLD GEX BOOMS
New Equipment / Booms
• Galvanised steel construction
• Nozzles protection fitted to outer sections
• Stainless steel boom tubes with
non-drip nozzles bodies and AirMix®
low-drift nozzles fitted
• Adjustable tension spring breakaway
for each boom arm
• Boom folds hydraulically in a cross-fold style. Note: the 8 and 10 metre models have a manual flip-over outer section which needs to be manually secured in the folded position prior to folding the boom for transport
• Ideal boom for small row-cropping
situations or vegetables
Click on an image to enlarge.
| CODE | DESCRIPTION |
|---|---|
| GEX06H | 6 metre galvanised hydraulic folding boom; 12 non-drip nozzle bodies, 2 rams for folding, hydraulically plumbed to fold together |
| GEX08H | 8 metre galvanised hydraulic folding boom; 16 non-drip nozzle bodies, 2 rams for folding, hydraulically plumbed to fold together. 1 metre of each end is manually unfolded to make the boom 8 metres |
| GEX10H | 10 metre galvanised hydraulic folding boom; 20 non-drip nozzle bodies, 2 rams for folding, hydraulically plumbed to fold together. 2 metres of each end is manually unfolded to make the boom 10 metres |
| MHL12-2-KIT | Second set of hydraulic hoses to allow left/right individual fold of GEX boom |
