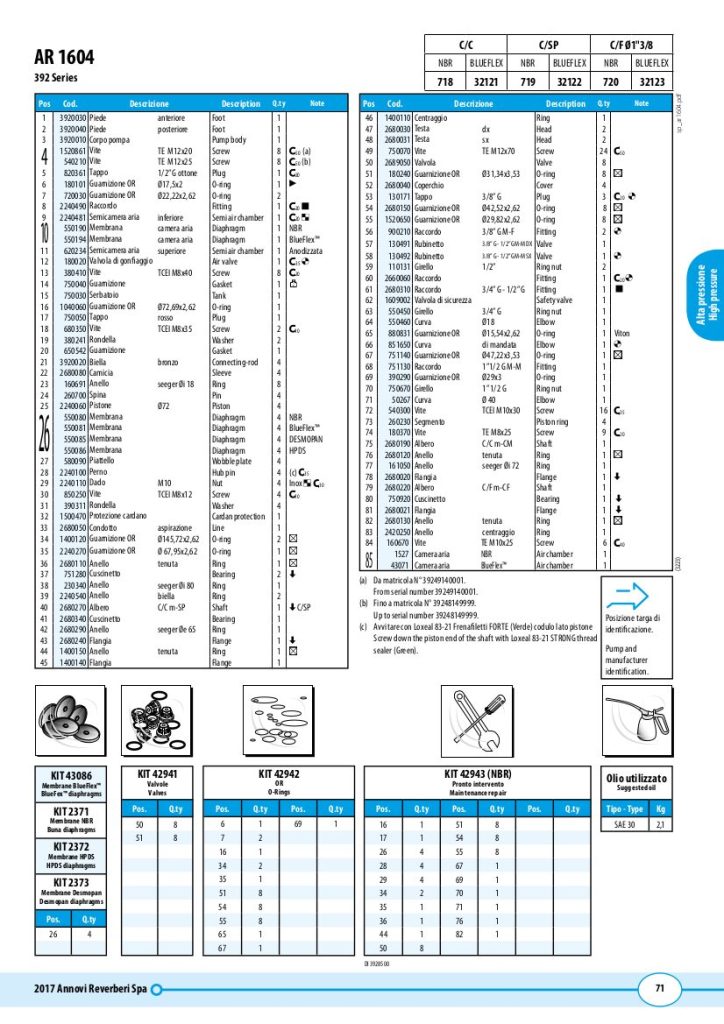

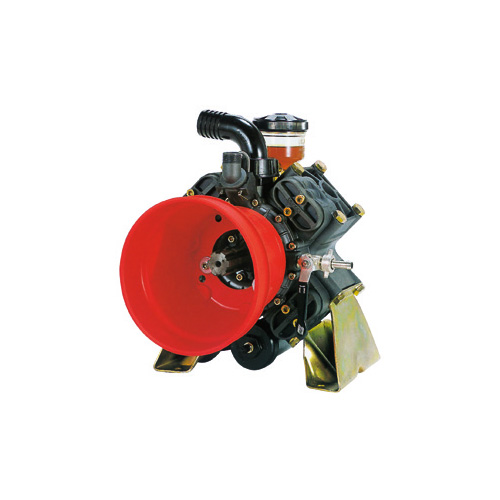

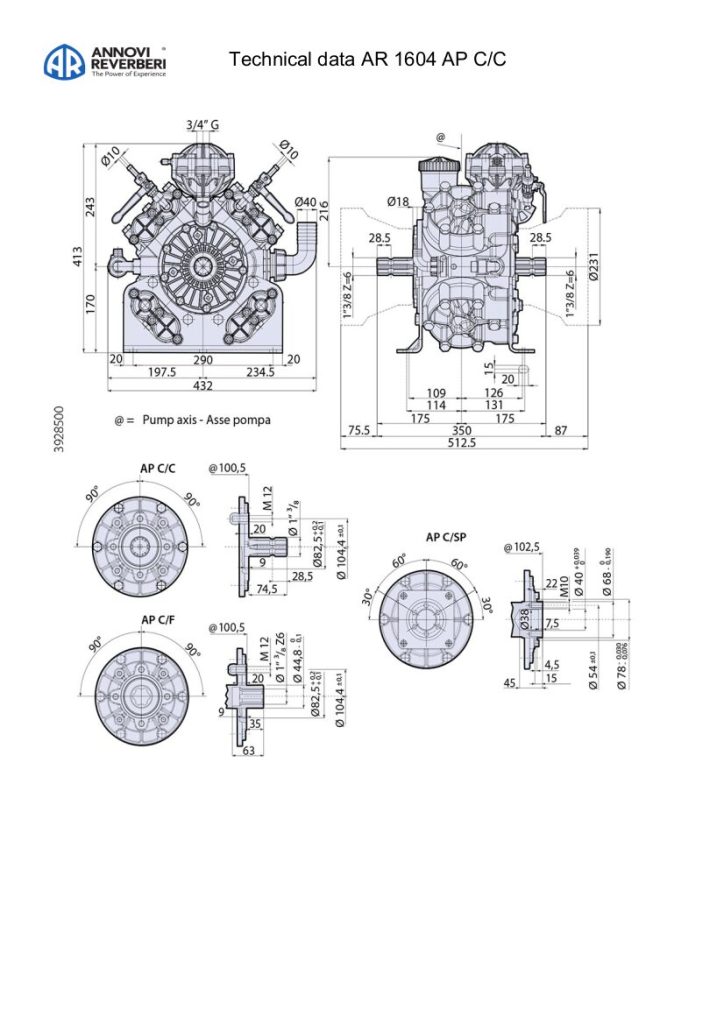

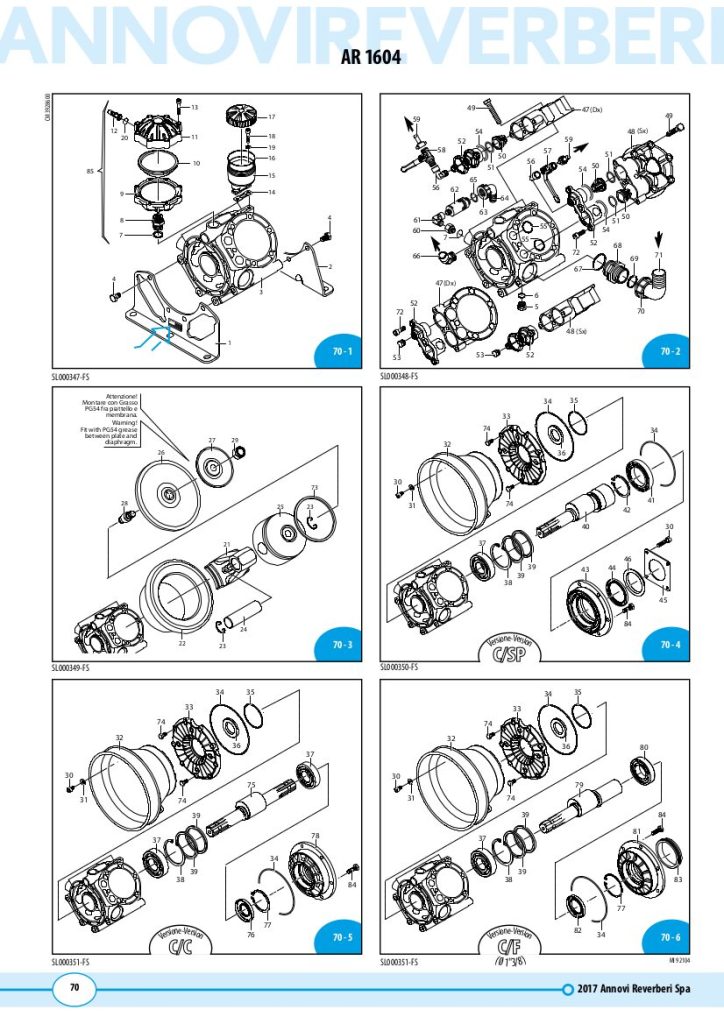

AR1604 Cardan Shaft HP Pump

Annovi Reverberi Pump heads and manifolds are made from reinforced polypropylene or nylon to allow use with a wider range of products, including liquid fertilisers.

AR1604 – Four diaphragm pump with Cardan Shaft – 1+3/8″ 6-spline shaft both sides of pump

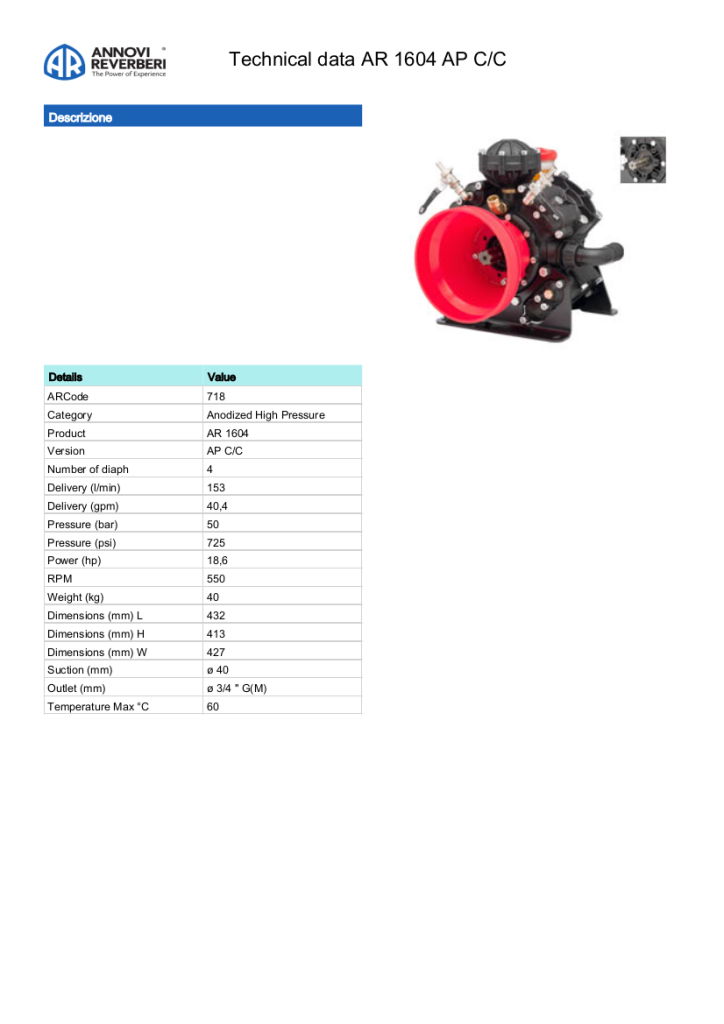

Open Flow: 153 l/min | Max Pressure: 50 bar | Max RPM: 550 | Weight: 40kg | HP Required: 18
