AR185LFP Cardan Shaft Pump

Name: AR185LFP Cardan Shaft Pump
SKU: AR185LFP-CF25
Availability: InStock

$3,620.20 incl. GST

AR185LFP Four diaphragm low pressure pump with reinforced nylon heads & manifolds.
Ideal for booms up to 21-24 metres.

Annovi Reverberi AR185LFP Four diaphragm, low pressure pump with reinforced nylon heads & manifolds.

CF25 pumps have female input for direct hydraulic motor fitting 6-spline male shaft on one side.

Open Flow: 182 l/min | Max Pressure: 15 bar | Max RPM: 550 | Weight: 25kg | HP Required: 7.4

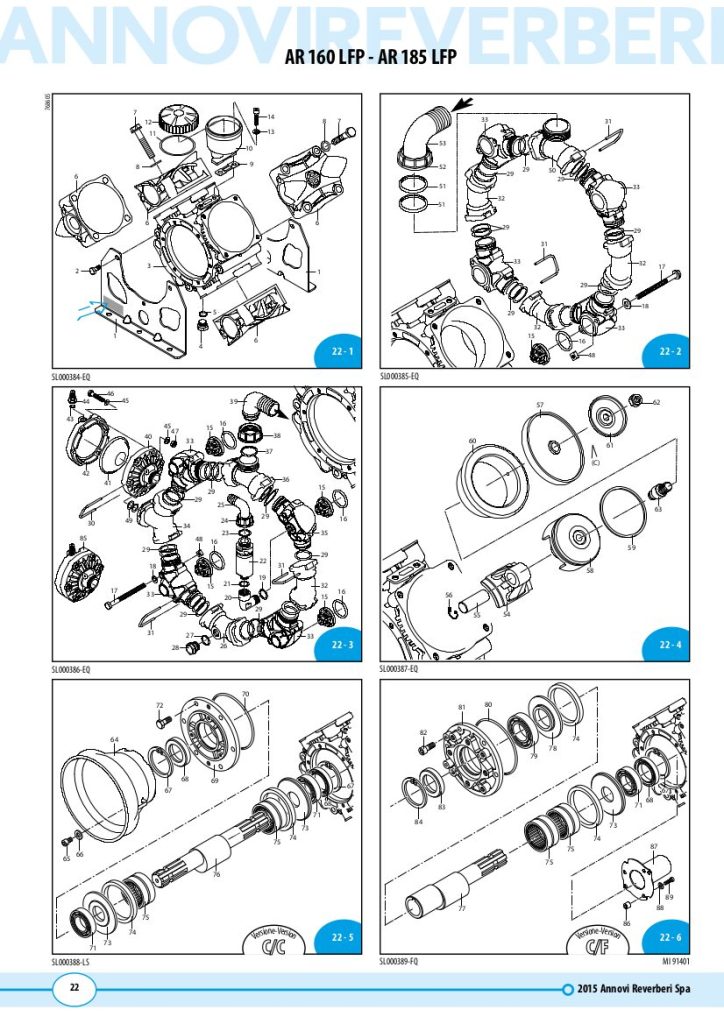

AR185LFP-CF25 Parts Diagram - Page 1

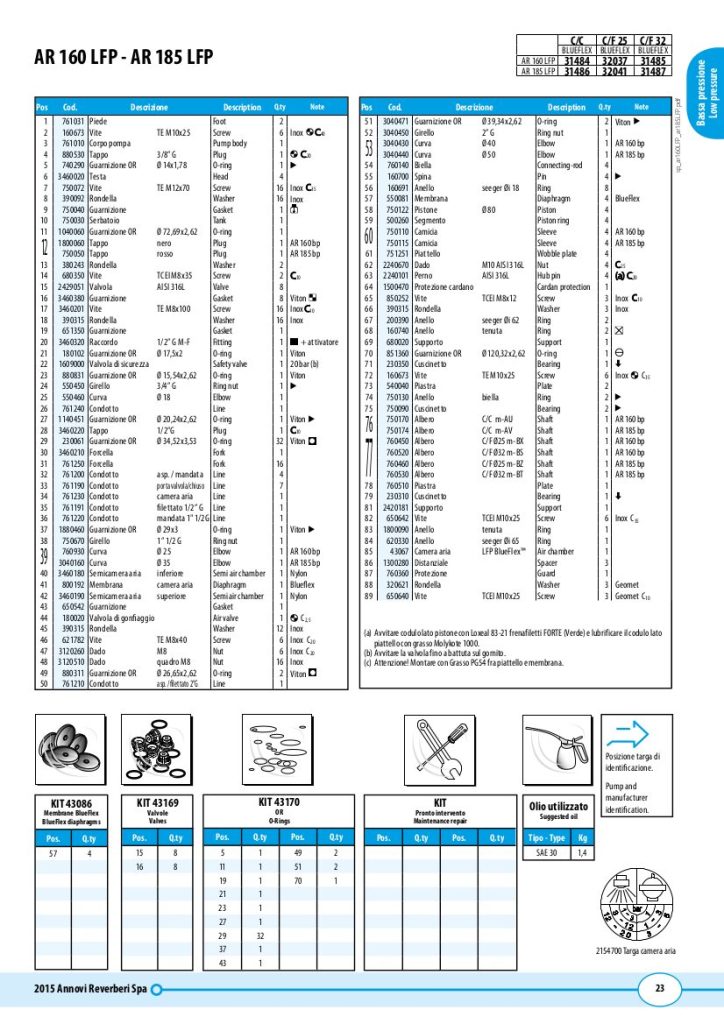

AR185LFP-CF25 Parts Diagram - Page 2

AR185LFP-CF25 Parts Diagram - Page 3
